アトムニャン開発日誌
PicoRubyのWeb terminalやRuntimeGemsがうまく動くようになったらPicoRubyアトムニャンのレシピにブログに書いて人にすすめて歩こうと思ってるのにちょっとまだかかりそうで、かといって初めての人にいきなりビルドから入ってもらうのなんとなくためらう。しかし公開の圧も感じるのでここに書いてくことにする。普段ESP32でPicoRuby動かしてるひとになら通じるだろう。
用意するもの
- ボディ
- 本体
インストール
Setting Up a Development Environment の手順通り入れていくが以下の点に注意が必要
- AtomS3をダウンロードモード(ボタン長押し+USB接続)
- 最初に Raspberry Pi Pico 繋ぐときみたいな感じでつなぐ
- 通常のESP32(Atom Matrixなど)はesptoolが自動でダウンロードモードに切り替えてくるけど、AtomS3のようにUSBが内蔵のボードだと自分で手動で入れる必要があるトノコト
When using USB console (boards without an external USB-to-UART chip)の手順が必要- 中身はesp32s3なのでsetupは以下を選ぶ
$ rake setup_esp32s3 # if you use esp32s3
コード

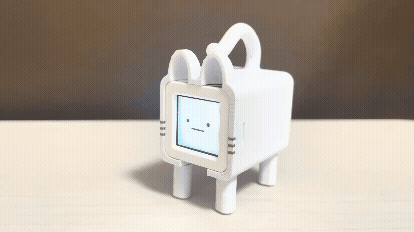

何にも作らず標準で入っているSPI使っただけでもメモリキチキチに調整すればまばたき表示くらいはできる。

require "spi"
dc = GPIO.new(33, GPIO::OUT)
rst = GPIO.new(34, GPIO::OUT)
bl = GPIO.new(16, GPIO::OUT)
bl.write(1)
rst.write(1); sleep_ms 10
rst.write(0); sleep_ms 10
rst.write(1); sleep_ms 120
spi = SPI.new(
unit: :ESP32_SPI2_HOST,
frequency: 40_000_000,
sck_pin: 17,
copi_pin: 21,
cipo_pin: -1,
cs_pin: 15,
mode: 0
)
dc.write(0); spi.write(0xFE)
dc.write(0); spi.write(0xEF)
dc.write(0); spi.write(0x3A)
dc.write(1); spi.write(0x05)
dc.write(0); spi.write(0x36)
dc.write(1); spi.write(0xC8)
dc.write(0); spi.write(0x11)
sleep_ms 120
dc.write(0); spi.write(0x21)
dc.write(0); spi.write(0x29)
# Fill screen white
dc.write(0); spi.write(0x2A)
dc.write(1); spi.write(0x00, 0x02, 0x00, 0x81)
dc.write(0); spi.write(0x2B)
dc.write(1); spi.write(0x00, 0x01, 0x00, 0x80)
dc.write(0); spi.write(0x2C)
dc.write(1)
buf = "\xFF\xFF" * 128
i = 0
while i < 128
spi.write(buf)
i += 1
end
# Mouth
dc.write(0); spi.write(0x2A)
dc.write(1); spi.write(0x00, 0x2E, 0x00, 0x56)
dc.write(0); spi.write(0x2B)
dc.write(1); spi.write(0x00, 0x4C, 0x00, 0x4F)
dc.write(0); spi.write(0x2C)
dc.write(1)
buf = "\x00\x00" * 41
i = 0
while i < 4
spi.write(buf)
i += 1
end
# Blink loop
op = 1
c = 0
while true
col = 0x1D
while col <= 0x5D
dc.write(0); spi.write(0x2A)
dc.write(1); spi.write(0x00, col, 0x00, col + 10)
dc.write(0); spi.write(0x2B)
dc.write(1); spi.write(0x00, 0x36, 0x00, 0x40)
dc.write(0); spi.write(0x2C)
dc.write(1)
dy = -5
while dy <= 5
dx = -5
while dx <= 5
b = 0
if op == 1
b = 1 if dx * dx + dy * dy <= 25
else
b = 1 if dy == 0
end
if b == 1
spi.write("\x00\x00")
else
spi.write("\xFF\xFF")
end
dx += 1
end
dy += 1
end
col += 0x40
end
if op == 1
c += 1
sleep_ms(5000 + c * 7 % 5 * 1000)
op = 0
else
sleep_ms 150
op = 1
end
end
でもそれだと厳しいのでmrbgemを作ったがちょっと微妙なので作り直している。(picoruby-lcdと、スタックチャンにも応用できるようなでかいネームスペースの汎用型のものを考えてみたがやってみてはじめていまいちがわかった)
picoruby-lcd部分(まずはRuby実装だけで)
require "gpio"
require "spi"
class LCD
attr_reader :width, :height
def initialize(controller, spi:, dc:, rst:, bl:)
@spi = spi
@dc = GPIO.new(dc, GPIO::OUT)
@rst = GPIO.new(rst, GPIO::OUT)
@bl = GPIO.new(bl, GPIO::OUT)
# Reset
@rst.write(1); sleep_ms 10
@rst.write(0); sleep_ms 10
@rst.write(1); sleep_ms 120
case controller
when :gc9107
init_gc9107
else
raise ArgumentError, "Unknown LCD controller: #{controller}"
end
@bl.write(1)
end
def cmd(byte)
@dc.write(0)
@spi.write(byte)
end
def data(*bytes)
@dc.write(1)
@spi.write(*bytes)
end
def fill(color)
fill_rect(0, 0, @width, @height, color)
end
def fill_rect(x, y, w, h, color)
set_window(x, y, w, h)
pixel = ((color >> 8) & 0xFF).chr + (color & 0xFF).chr
buf = pixel * w
@dc.write(1)
i = 0
while i < h
@spi.write(buf)
i += 1
end
end
def blit(x, y, w, h, bitmap, fg, bg)
set_window(x, y, w, h)
fg_hi = (fg >> 8) & 0xFF
fg_lo = fg & 0xFF
bg_hi = (bg >> 8) & 0xFF
bg_lo = bg & 0xFF
@dc.write(1)
i = 0
total = w * h
while i < total
if (bitmap.getbyte(i >> 3) >> (7 - (i & 7))) & 1 == 1
@spi.write(fg_hi, fg_lo)
else
@spi.write(bg_hi, bg_lo)
end
i += 1
end
end
def set_window(x, y, w, h)
x1 = x + @offset_x
x2 = x1 + w - 1
y1 = y + @offset_y
y2 = y1 + h - 1
cmd(0x2A)
data((x1 >> 8) & 0xFF, x1 & 0xFF, (x2 >> 8) & 0xFF, x2 & 0xFF)
cmd(0x2B)
data((y1 >> 8) & 0xFF, y1 & 0xFF, (y2 >> 8) & 0xFF, y2 & 0xFF)
cmd(0x2C)
end
def init_gc9107
@width = 128
@height = 128
@offset_x = 2
@offset_y = 1
cmd(0xFE) # Inter Register Enable 1
cmd(0xEF) # Inter Register Enable 2
cmd(0x3A); data(0x05) # Pixel format: RGB565
cmd(0x36); data(0xC8) # Memory access control
cmd(0x11) # Sleep out
sleep_ms 120
cmd(0x21) # Display inversion on
cmd(0x29) # Display on
end
end

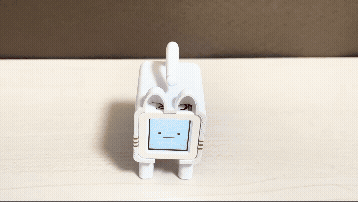

mpu6886のmrbgemも使って傾けたら笑う、振ったらぐるぐるした目みたいなのが一応mrbにコンパイルしなくてもギリいける。

require "spi"
require "lcd"
require "i2c"
require "mpu6886"
spi = SPI.new(unit: :ESP32_SPI2_HOST, frequency: 40_000_000,
sck_pin: 17, copi_pin: 21, cipo_pin: -1, cs_pin: 15)
lcd = LCD.new(:gc9107, spi: spi, dc: 33, rst: 34, bl: 16)
lcd.fill(0xFFFF)
i2c = I2C.new(unit: :ESP32_I2C0, frequency: 100_000,
sda_pin: 38, scl_pin: 39)
mpu = MPU6886.new(i2c)
EO = "\x04\x07\xF1\xFF\x3F\xE7\xFD\xFF\xDF\xF3\xFE\x7F\xC7\xF0\x10\x00"
EC = "\x00\x00\x00\x00\x00\x00\x01\xFF\xC0\x00\x00\x00\x00\x00\x00\x00"
EE = "\x00\x00\x00\x38\x1F\xC7\xFC\xFF\xBF\xFF\xFF\x00\x00\x00\x00\x00"
ES = "\x00\x00\x00\x00\x00\x00\x00\x00\x01\xE0\x00\x7F\xE0\x07\xCF\x80\x78\x0E\x03\x00\x38\x38\x00\xC1\x87\x87\x0C\x3E\x18\x60\x38\xC3\x01\xC6\x1C\x0E\x30\x70\x61\x83\xEF\x0C\x0F\xF0\x00\x1E\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00"
EH = "\x63\x7B\xFF\xFF\xF7\xF1\xF8\x70\x10"
lcd.fill(0xFFFF)
lcd.blit(27, 53, 11, 11, EO, 0x0000, 0xFFFF)
lcd.blit(91, 53, 11, 11, EO, 0x0000, 0xFFFF)
lcd.fill_rect(44, 75, 41, 4, 0x0000)
sp = 0
c = 0
t = 50
while true
a = mpu.acceleration
if sp == 0
c += 1
if c == t
t = c + 50 + c * 7 % 5 * 10
lcd.blit(27, 53, 11, 11, EC, 0x0000, 0xFFFF)
lcd.blit(91, 53, 11, 11, EC, 0x0000, 0xFFFF)
sleep_ms 150
lcd.blit(27, 53, 11, 11, EO, 0x0000, 0xFFFF)
lcd.blit(91, 53, 11, 11, EO, 0x0000, 0xFFFF)
end
ts = a[:x] * a[:x] + a[:y] * a[:y] + a[:z] * a[:z]
if ts > 2.5
sp = 40
lcd.blit(22, 48, 21, 21, ES, 0x0000, 0xFFFF)
lcd.blit(86, 48, 21, 21, ES, 0x0000, 0xFFFF)
lcd.fill_rect(44, 73, 41, 8, 0xFFFF)
lcd.fill_rect(52, 73, 25, 8, 0x0000)
elsif ts < 1.5 && a[:z] > 0.7
sp = -20
lcd.blit(27, 53, 11, 11, EE, 0x0000, 0xFFFF)
lcd.blit(91, 53, 11, 11, EE, 0x0000, 0xFFFF)
lcd.fill_rect(44, 73, 41, 8, 0xFFFF)
lcd.fill_rect(52, 73, 25, 8, 0x0000)
lcd.blit(106, 30, 9, 8, EH, 0x0000, 0xFFFF)
end
else
if sp > 0
sp -= 1
else
sp += 1
end
if sp == 0
lcd.fill(0xFFFF)
lcd.blit(27, 53, 11, 11, EO, 0x0000, 0xFFFF)
lcd.blit(91, 53, 11, 11, EO, 0x0000, 0xFFFF)
lcd.fill_rect(44, 75, 41, 4, 0x0000)
end
end
sleep_ms 100
end
最初からこうではないけどちょっとずつ試しながらあれやこれやとやってるとコードが長くなっていき、節約のため短くしようとしたらこうなった。 一度作ってみるとああしたい、こうしたいが出てくるのでまた磨いていく。動けば一緒と言ってしまえばそうなんだけど、気に入るまで手を入れられるのが個人開発のいいところ。
とはいえ動くのは嬉しいからいろんなところ連れ回してる。
